Super five types of unshielded information modules

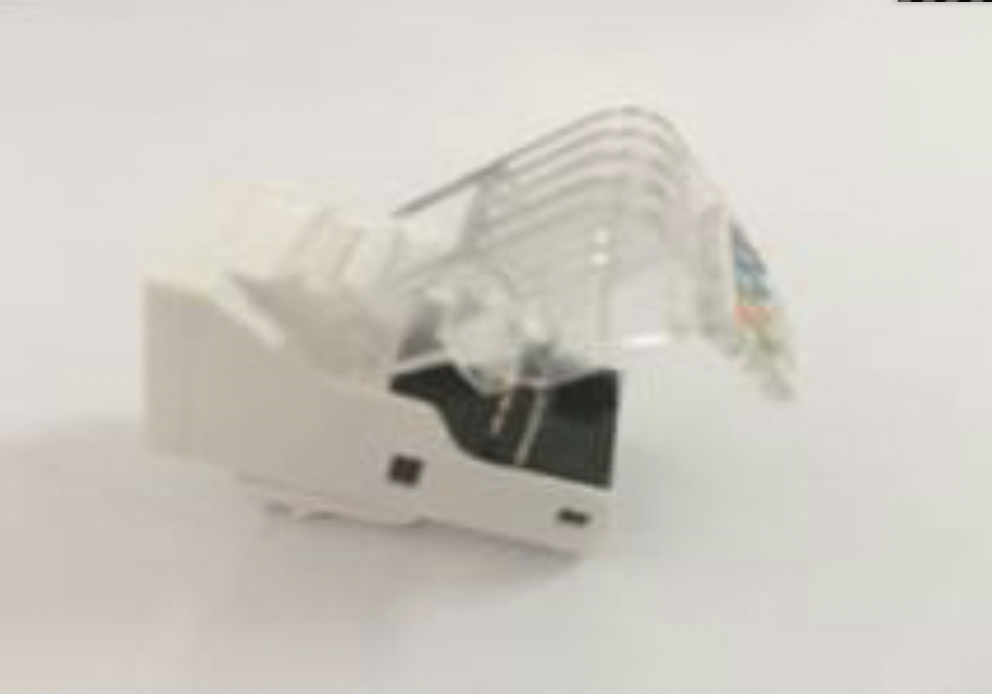

Product name: CAT 6 unshielded 90 ° module

Reference standards: TIA/EIA 568B, ISO/IEC 11801, YD/T 926.3; Product name: CAT 5e unshielded 90 ° module

Reference standards: TIA/EIA 568B, ISO/IEC 11801, YD/T 926.3;

Product Description: Meets and exceeds T-568 B-Class 5 transmission performance, suitable for communication socket connection between equipment and work rooms. The appearance is compact, and there is a universal wire sequence label clearly marked on the module, making it easy to accurately and quickly complete termination. The buckle type termination cap ensures that all wires are terminated and prevents sliding.

Product features:

? 1. Can provide up to 100MHz bandwidth support, supporting typical applications of 100Mbps;

? 2. Compatible with T568A and T568B line sequences;

? 3. The IDC interface material is high-strength engineering plastic, and the wire clamp is made of phosphorus bronze. The number of times the wire is clamped is greater than 250 times;? 4. CONTACT Gold Needle Plating 50 μ The material is phosphorus bronze, with a resistance to pulling more than 750 times;

? 5. The module is firmly connected, with strong durability and stability. Combined with Mingxin Super Class 5 data cables, distribution frames, and jumpers, the overall Super Class 5 unshielded channels/links meet and greatly exceed the standard requirements, providing a rich margin of system indicators;

? 6. Suitable for 24AWG wire gauge

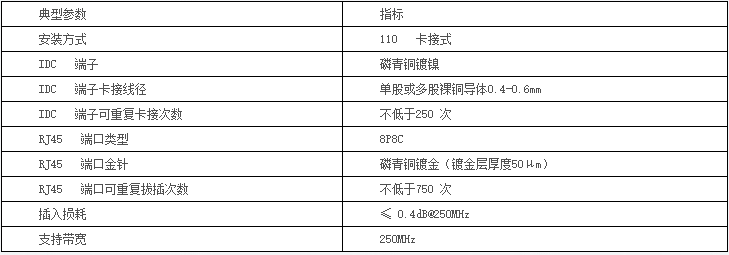

Product specifications:

Install according to chromatography:

568A/B wire sequence wiring

Packaging instructions:

Single modules are packaged in colored plastic bags, while multiple modules are packaged in colored paper boxes.

Ordering information:
